Name: Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine Sandwich Panelproduction Line
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: सैंडविच पैनल रोल बनाने की मशीन
Price: 40,500.00 USD
Availability: InStock

घर > उत्पादों > सैंडविच पैनल रोल बनाने की मशीन >

Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine Sandwich Panelproduction Line

automatic precast EPS wall panel machine

concrete sandwich panel production line

sandwich panel roll forming machine with warranty

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

FMS

प्रमाणन:

मॉडल संख्या:

सैंडविच पैनल रोल बनाने की मशीन

हमसे संपर्क करें

उद्धरण मांगें

उत्पाद विवरण

दस्ता का व्यास:

70 मिमी या आपकी आवश्यकता के अनुसार

शाफ्ट की सामग्री:

उच्च ग्रेड 45# जाली स्टील

काटने का ब्लेड:

शमन उपचार के साथ CR12 मोल्ड स्टील

गठन की गति:

5-8 मी / मिनट

ब्लेड सामग्री काटना:

Cr12MOV, हीट ट्रीटमेंट

बिजली की आपूर्ति:

380V, 3 चरण, 50Hz

दस्ता सामग्री:

उच्च ग्रेड 45# स्टील, व्यास 70 मिमी

मोटाई:

0.3-0.8 मिमी

कदम बनाना:

11 स्टेशन

शक्ति:

5.5 kw

सामग्री की चौड़ाई:

1200 मिमी

प्रमुखता देना:

automatic precast EPS wall panel machine

concrete sandwich panel production line

sandwich panel roll forming machine with warranty

भुगतान और शिपिंग शर्तें

न्यूनतम आदेश मात्रा

1 सेट

मूल्य

negotiable

पैकेजिंग विवरण

प्लास्टिक फिल्म से नग्न.

प्रसव के समय

45 विश्व दिवस

भुगतान शर्तें

टी/टी, एल/सी

आपूर्ति की क्षमता

प्रति माह 20 सेट

संबंधित उत्पाद

वीडियो

Auto Sandwich Panel Production Line/PU Foam Sandwich Wall Panel Making Machine

सबसे अच्छी कीमत प्राप्त करें

वीडियो

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें

50-300 Thickness Sandwich Panel Roll Forming Machine with Lichao Motor and 32KW Hydraulic Motor Power

सबसे अच्छी कीमत प्राप्त करें

Mode EPS Sandwich Panel Line for 50-300 Thickness Production Customization

सबसे अच्छी कीमत प्राप्त करें

हमसे संपर्क करें

अब संपर्क करें

उत्पाद वर्णन

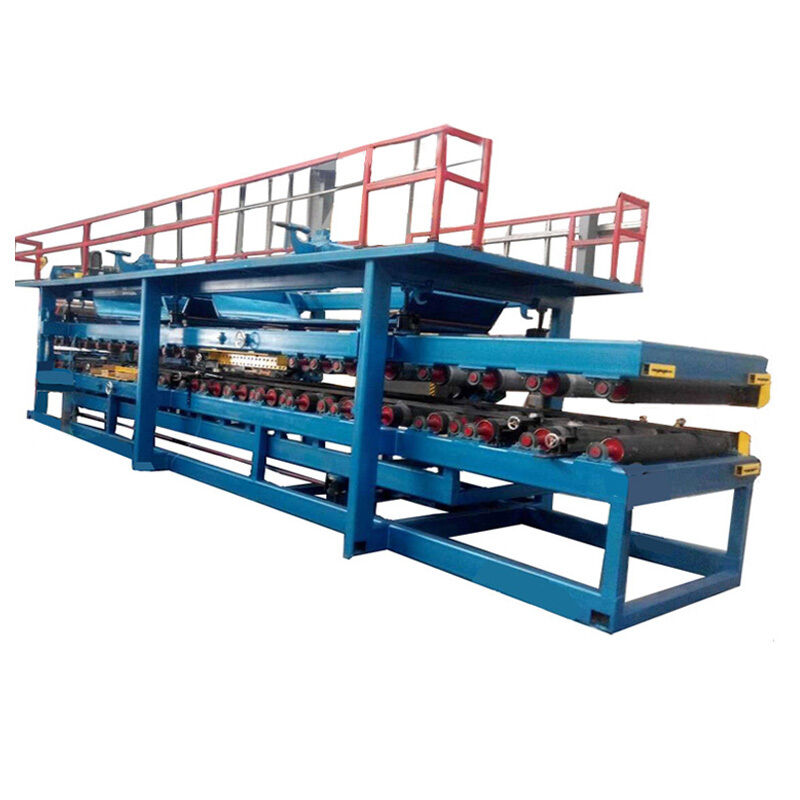

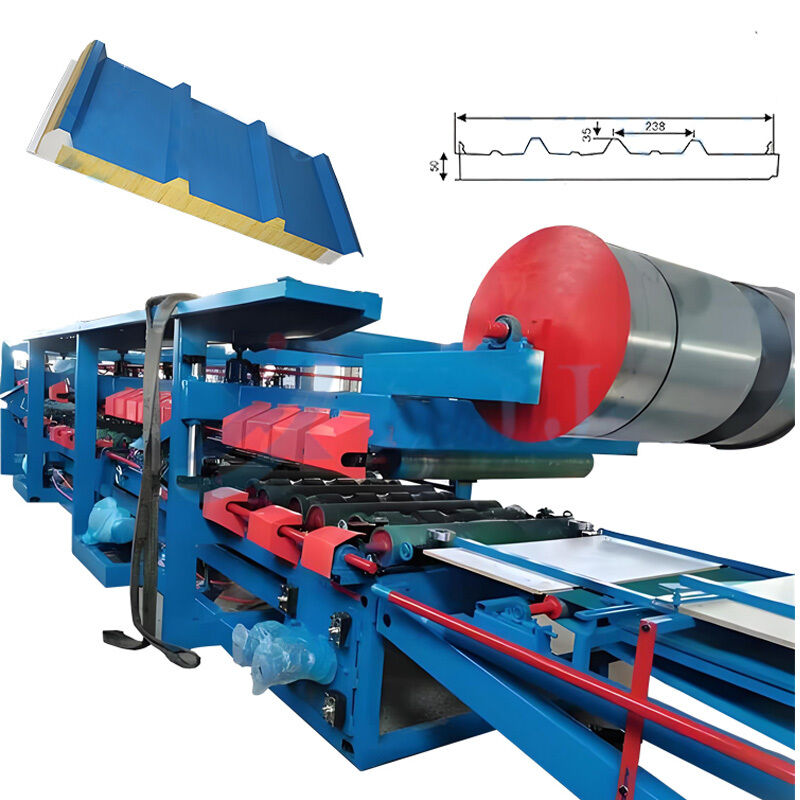

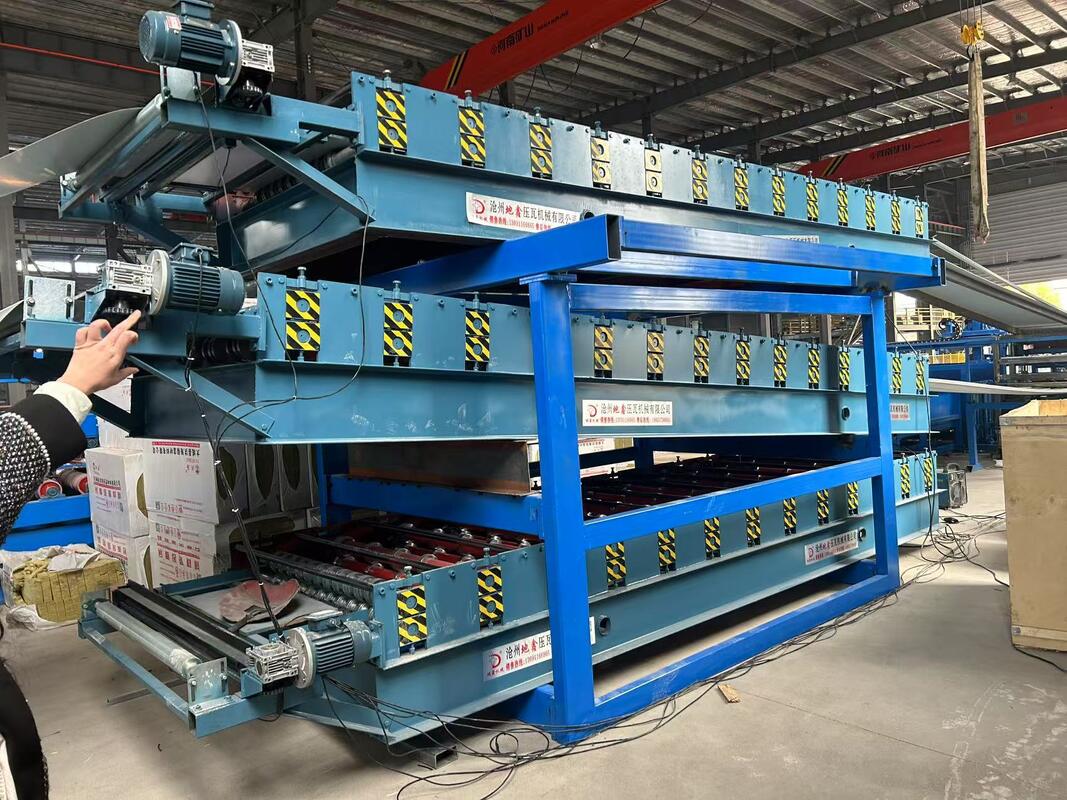

Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine

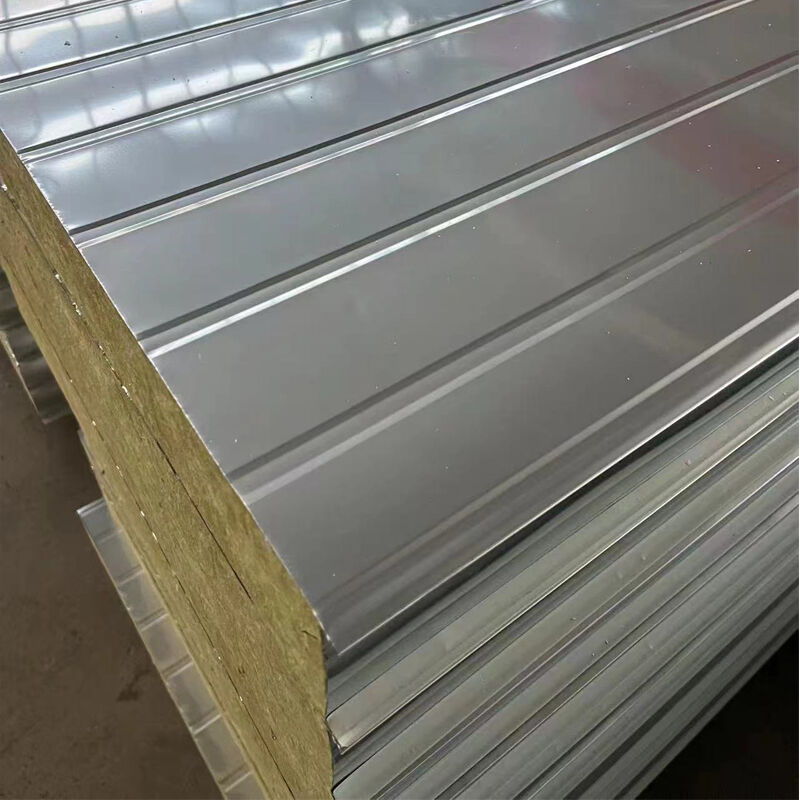

This advanced production line is designed for manufacturing EPS rock wool composite boards, a widely used building insulation material for walls, roofs, and floors. The automated system ensures efficient production of high-quality sandwich panels.

Production Process Overview

EPS Board Processing: Precision cutting and trimming operations
Rock Wool Processing: Accurate cutting and systematic paving
Composite Bonding: Hot or cold pressing to bond materials
Final Molding: Formation of specification-compliant composite boards

Equipment Components

EPS Board Processing Unit: Cutting and trimming systems
Rock Wool Processing Unit: Cutting and paving mechanisms
Composite Unit: Bonding and pressing systems
Molding Unit: Final shaping and sizing equipment
Control System: Automated process control

Technical Specifications

Material of Shaft	70 mm 45# steel forged
Thickness Range	50-250mm
Working Speed	5-6m/min
Dimensions	Approximately 34000mm × 2500mm × 2600mm
Total Power	32 KW
Electrical Hydraulic Station Power	4 KW
Hydraulic Station Pressure	12.0 Mpa
Roller Station	11/17 Rows

Warranty & Guarantee

1-Year Manufacturing Defect Guarantee (excluding electrical parts) from date of purchase.

Warranty Exclusions

Damage caused by natural disasters
Malfunctions due to user error
Issues resulting from unauthorized modifications
Problems occurring after relocation or shipment post-installation

Payment & Delivery Terms

Payment Structure: 40% advance payment, 60% balance before shipment
Delivery: FOB Tianjin Xingang Port
Lead Time: 65 days after receipt of down payment

Frequently Asked Questions

Does one machine produce only one style of panel profile?

No. For wider and double-layer making machines, it can produce more than 6 different types of panels.

What support is provided if the machine breaks down?

12-month warranty period. If parts cannot be repaired, we provide replacements (customer covers express costs). After warranty, we offer technical support and negotiated solutions for the equipment's lifetime.

Can you handle transportation?

Yes, we have extensive transportation experience. Please provide your destination port or address.

Are you a manufacturer or trading company?

We operate as both manufacturer and trading company.

Do you provide customization?

Yes, we design machines according to your requirements and profile drawings. Our engineers provide professional solutions for worldwide clients.

How can I verify machine testing before shipping?

We provide testing videos for reference, or welcome you to visit our factory and test the machine personally.
